OEM SERVICES

Changshu shunda plastic products factory (CSSSLD) is a professional non - standard plastic products OEM factory.

Provide full solution from concept, design, develop, and fabricate. And completely business service from inquiry, production, inspection, delivery and after sales.

Step01
Do quotations with customers' drawing or samples
Step02
Make mold according to samples or drawings with 50% deposite of mold charge
Step03
Confirmed the mold and pay the 50% balance of mold
Step04
Start production with 30% deposite of production fee
Step05
Do quality testing
Step06
Make the balance of production fee, then deliver goods

CUSTOMIZATION

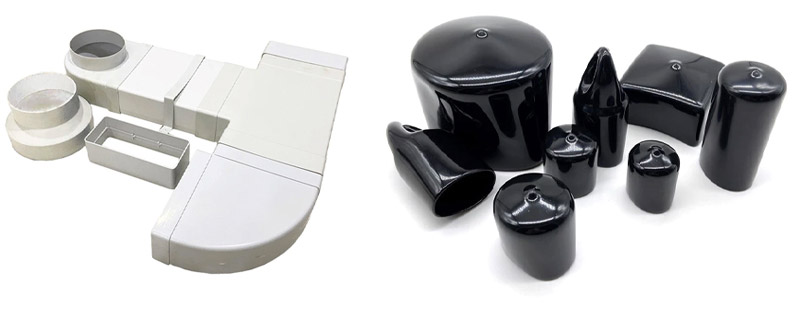

Specialized in plastic extrusion profile, pipe and injection part customization since 1997.

We provide in-house tooling production, also kinds of after production process such as printing, painting, special cutting, punching, drilling, ect.

Concept And Idea

Discussion with customer to know more about their design and idea

Tell Us What You Need In Details

Received the inquiry from customer. Reply within 24 hours

Subject: New Inquiry For Plastic

We are a looking for extruding a plastic profile with drilled holes ( drawing attached). It is a frame for the brush to suit the machine cleaning airport runaways.

So far we have been using PE-HD as a raw material – it must be resistant against cold temperatures (up to -40 C) and wear – not recycled material.

Delivery Parcel

Profile – length 832,5 (830) mm – drilled – please refer to the attached drawing – 19104 PCS

Profile – length 697 mm – drilled with the same hole spacing as 832,5 mm (drawings will be delivered before the order) - 24822 PCS

Profile – length 705 mm - drilled with the same hole spacing as 832,5 mm (drawings will be delivered before the order) – 2646 PCS
Are you also producing components with injection molding ?

There is another part to the same brush (tuft holder) – drawing attached .

Annual need for this tuft holder is around 800 000 pcs (one or two deliveries).

Material specification : working temperature -30 C - +30 C (hardness at least 90 Shore A – Stretch value at least 400%).

What is the raw material recommended by you.

Prices for tooling ?

Delivery time for the first sample ?

Delivery time for the order to shipment of the production parcel ?

I will send more drawings as well as 3D model of the parts if the pricing is accepted.

Thank you for the co-operation already in advance !

Terveisin / Best regards / MVH,

Arto Wallin

Discussion

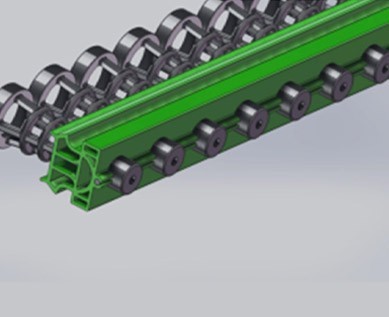

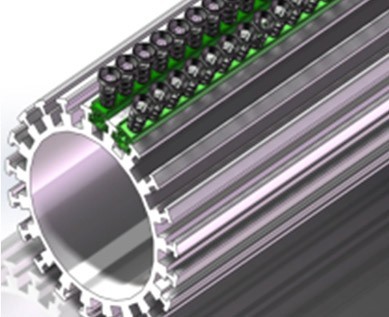

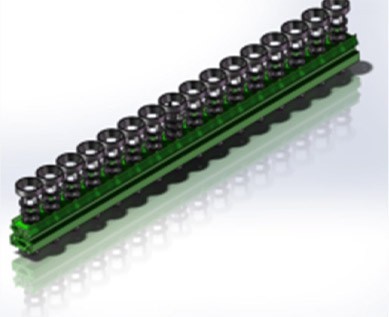

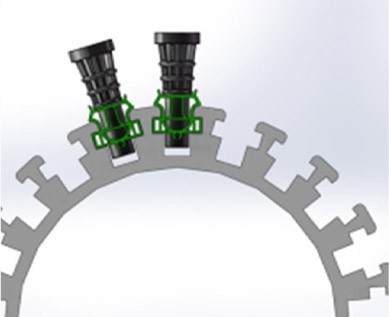

To confirm production feasibility, material, profile and injection part also fitted aluminum profile, three parts how to match up well with each other. Produce 3D or CNC prototypes first.

Developing

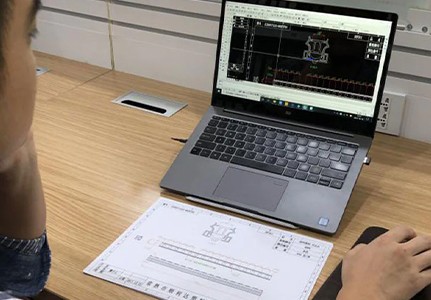

Mold / Tool designing and production.

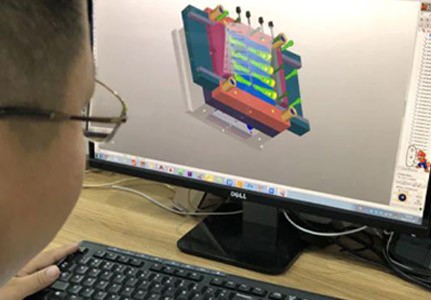

Injection mold design Different cavities

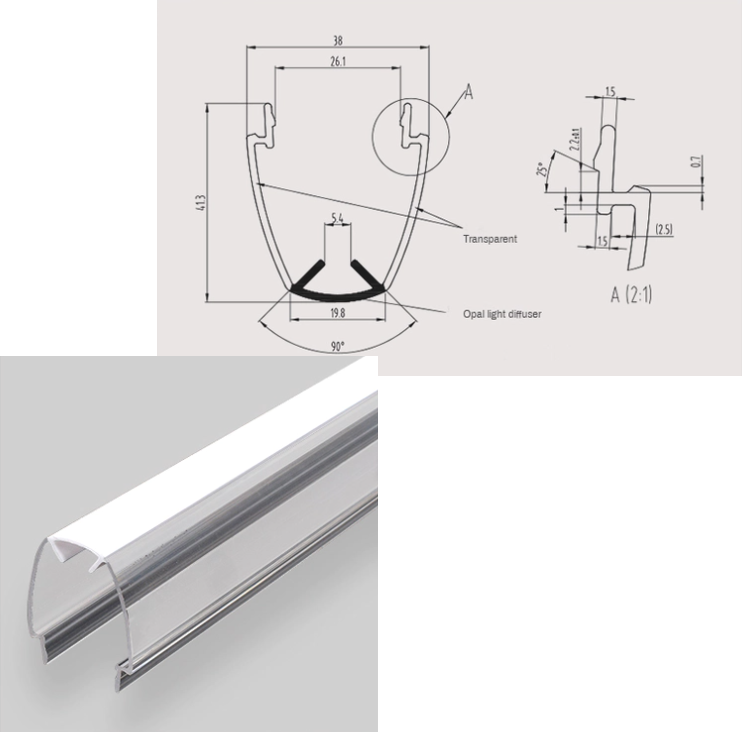

Design for tool of extrusion profile Mouth die and Shape mold
Rough cavity and core of mould

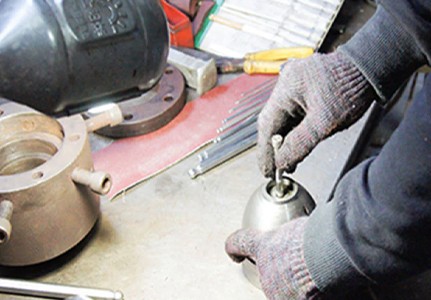

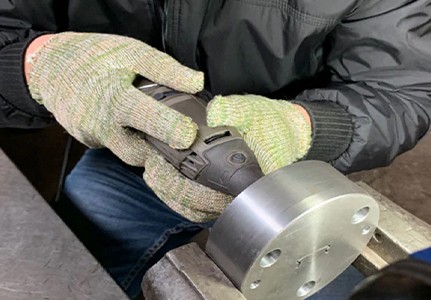

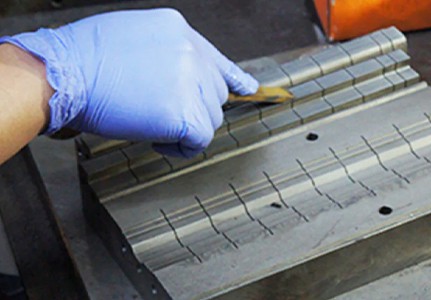

Electrodes and polishing

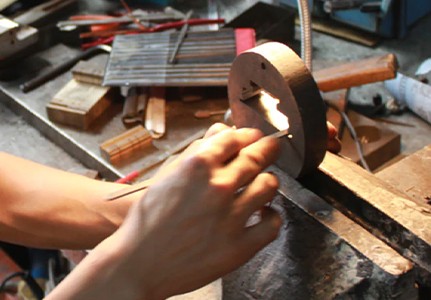

Precise carving
Assembling

Proofing

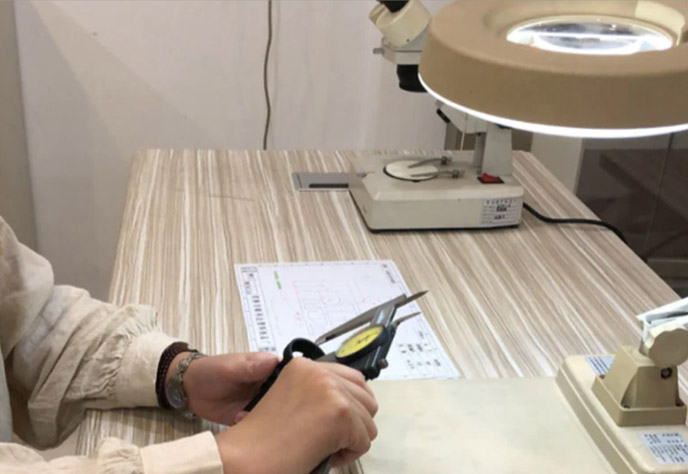

Initial samples checking before sending customer to approve.

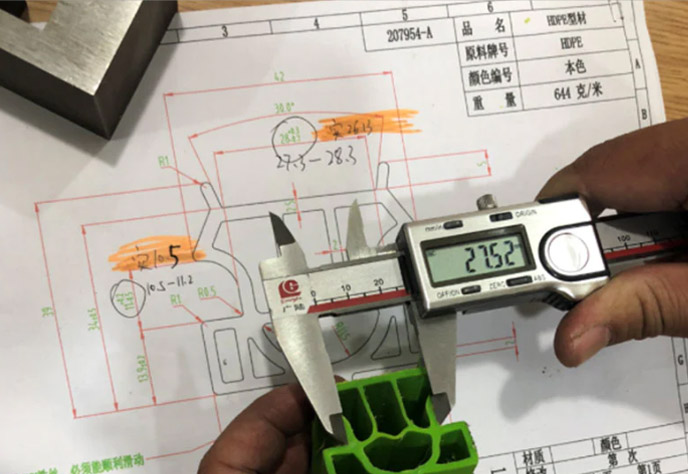

Samples checking according to the tolearance of drawing required
Samples checking for critical dimension

Mass Production

Be launched when samples approved by customers.

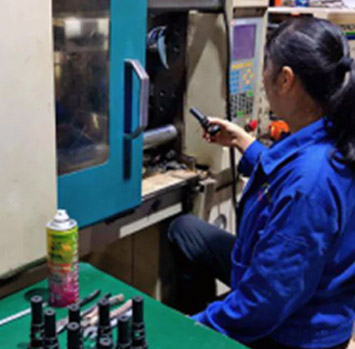

1st Trial or adjusting to 2st Trial when mold finished

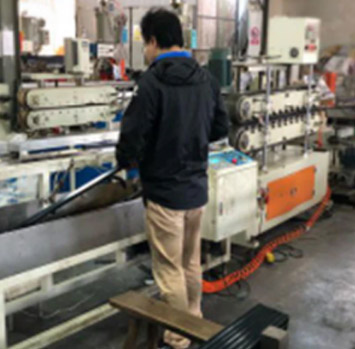

Extrusion tooling testing process

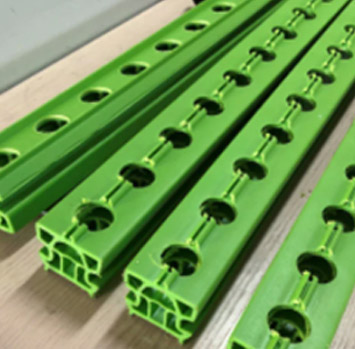

Drilling holes on profiles as designed

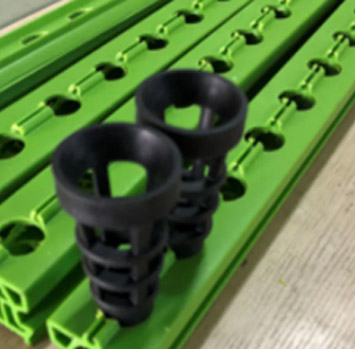

Test by assembling

Packing & Delivery

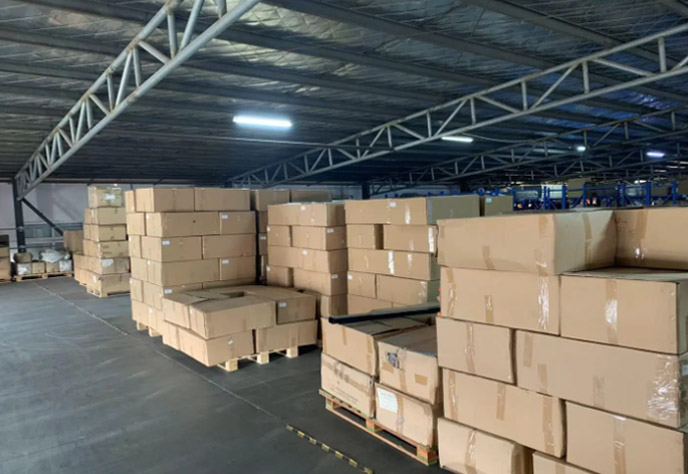

Packing in custom size of export cartons, inside which put foam PE film to protect.

Stick with label and shipping marks. Put all on pallets for better safe shipping.

Custom carton for different goods

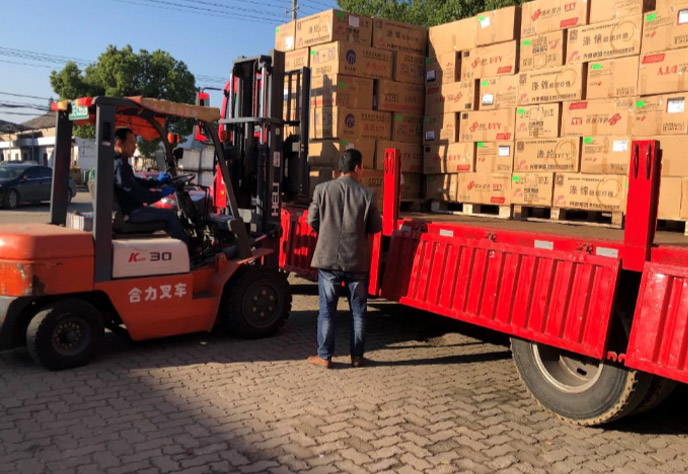

Safe delivery with pallets and clear label

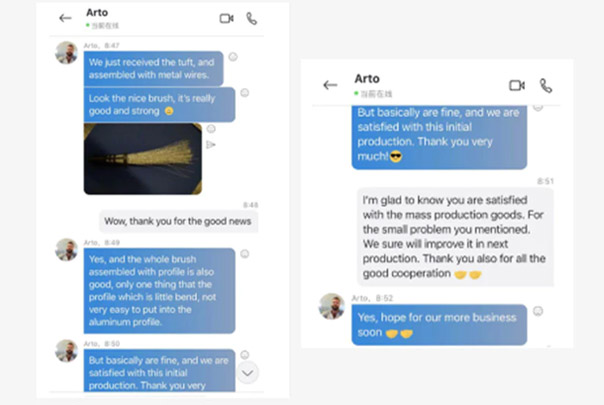

Continuous to follow- up customer’s feedback.

Positive Keep in contact and recommend

Continuous to follow- up customer’s feedback.
Positive:Keep in contact and recommend.
