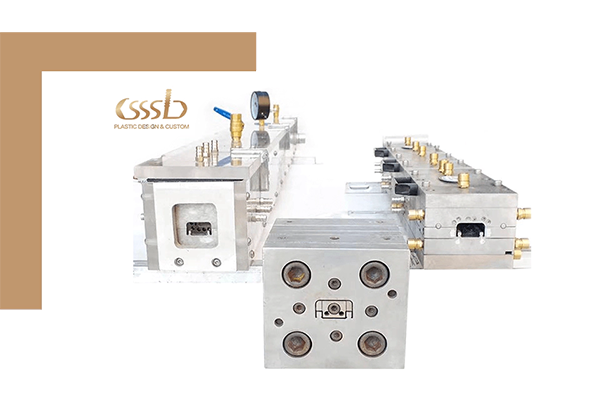

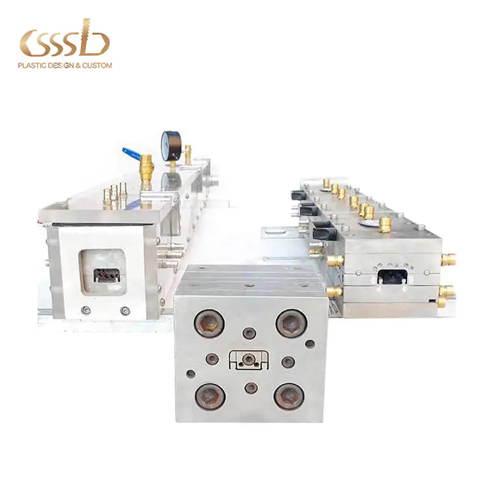

Stainless Steel Plastic Extrusion Mold, Tool

Model：Customized by CAD drawing with DwG format

MOQ：1set

Payment：T/T or Westem Union

Delivery Time：Tool - 30 days including testing samples

Delivery Term：EXW, FOB, CIF, DDU, EXPRESS

start Port：Shanghai

Certification：SGS,MSDS,IS09001

Packing：Wooden box or pallets

Product Introduction

Material	Stainless Steel S3r13.$KD11, DC53, S136 and so on.
Usage	Tool for extrusion profile, tube, pipe.
Production Process	Plastic extrusion technical
Surface Treatment	Polishing, electroplate and so on.
Post Process	CNC and wire cutting, Milling, polish and so on.
Dimension	Customized by CAD drawing
Certification	SGS MSDS.ISO9001

Process

1. Design the mold/ tool by CAD drawing of plastic profile, DWG or 3D format are all fine

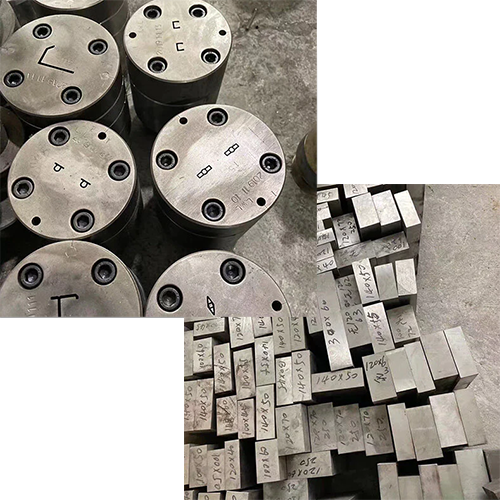

2. Prepare mold material. Have many material stock for common ones to save the production time. Usually the common extrusion mold material including “Stainless Steel S3r13. SKD11. DC53,$136 and so on”. Will be adjusted by the actual designing.

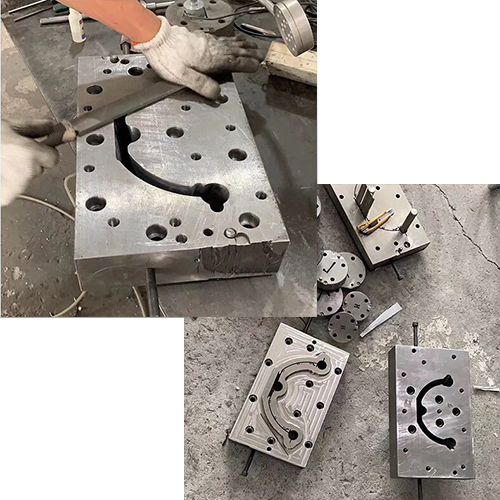

3.Produce by designed drawing. Including CNC cutting, milling, EDM, wire cuttingGrinding,Electrode, Polishing, Digging, Coating.., Assembling.

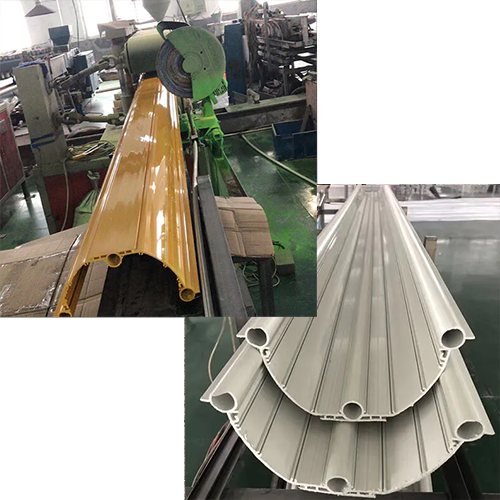

4. Test the mold, make out sample to approve
